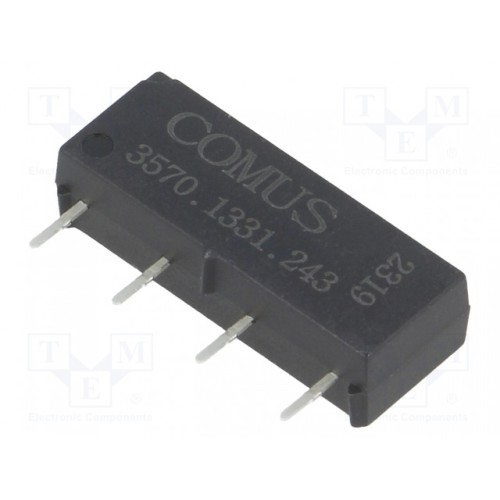

3570.1331.243; Relay: reed; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W; THT; SIP; COMUS

3570.1331.243; Relay: reed; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W; THT; SIP; COMUS
2-3 Days
3570.1331.243; Relay: reed; SPST-NO; Ucoil: 24VDC; 500mA; max.150VDC; 10W; THT; SIP; COMUS
... Read More
from
$5.05
Ex Tax: $2.54
  • Stock: 2-3 Days
  • Brand: COMUS
  • Model: 3570.1331.243
  • Weight: 1.60g
  • SKU: A231249
  • UPC: 417
  • JAN: 1
Products Sold: 0
Product Views:
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1
Manufacturer COMUS
Body dimensions 19x7.7x5.08mm
Case SIP
Coil resistance 2kΩ
Coil voltage max. 32V DC
Coil voltage min. 18V DC
Contact current max. 500mA
Contact resistance 200mΩ
Contacts configuration SPST-NO
Mounting THT
Operating temperature -40...85°C
Optional equipment diode
Rated coil voltage 24V DC
Relay series 3570
Switched voltage max. 150V DC
Switching capacity 10W
Terminal pitch 5.08mm
Type of relay reed
