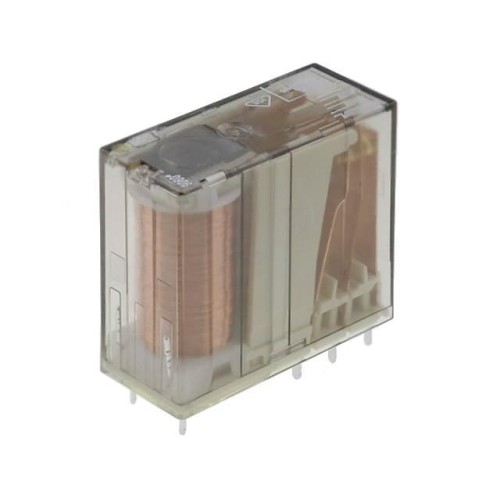

0-1393845-5; Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC; TE Connectivity

0-1393845-5; Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC; TE Connectivity
0-1393845-5; Relay: electromagnetic; DPDT; Ucoil: 24VDC; 8A/250VAC; 8A/24VDC; TE Connectivity
... Read More
from
$15.69
Ex Tax: $11.41
  • Stock: In Stock
  • Brand: TE Connectivity
  • Model: 0-1393845-5
  • Weight: 17.52g
  • SKU: A472713
  • UPC: 279
  • JAN: 1
Products Sold: 0
Product Views:
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
1
Manufacturer TE Connectivity
Weight 18g
AC contacts rating @R 8A / 250V AC
Body dimensions 29x12.6x25.5mm
Coil current 21.8mA
Coil power consumption 500mW
Coil resistance 270Ω
Contact current max. 8A
Contact material AgNi + Au
Contacts configuration DPDT
DC contacts rating @R 8A / 24V DC
IP rating IP67
Mechanical durability 30000000 cycles
Mounting PCB
Operating temperature -40...70°C
Rated coil voltage 24V DC
Relay series RPII/2
Relay variant miniature
Switched voltage max. 300V DC
Switching capacity 4kVA
Terminal pitch 5mm
Type of relay electromagnetic
